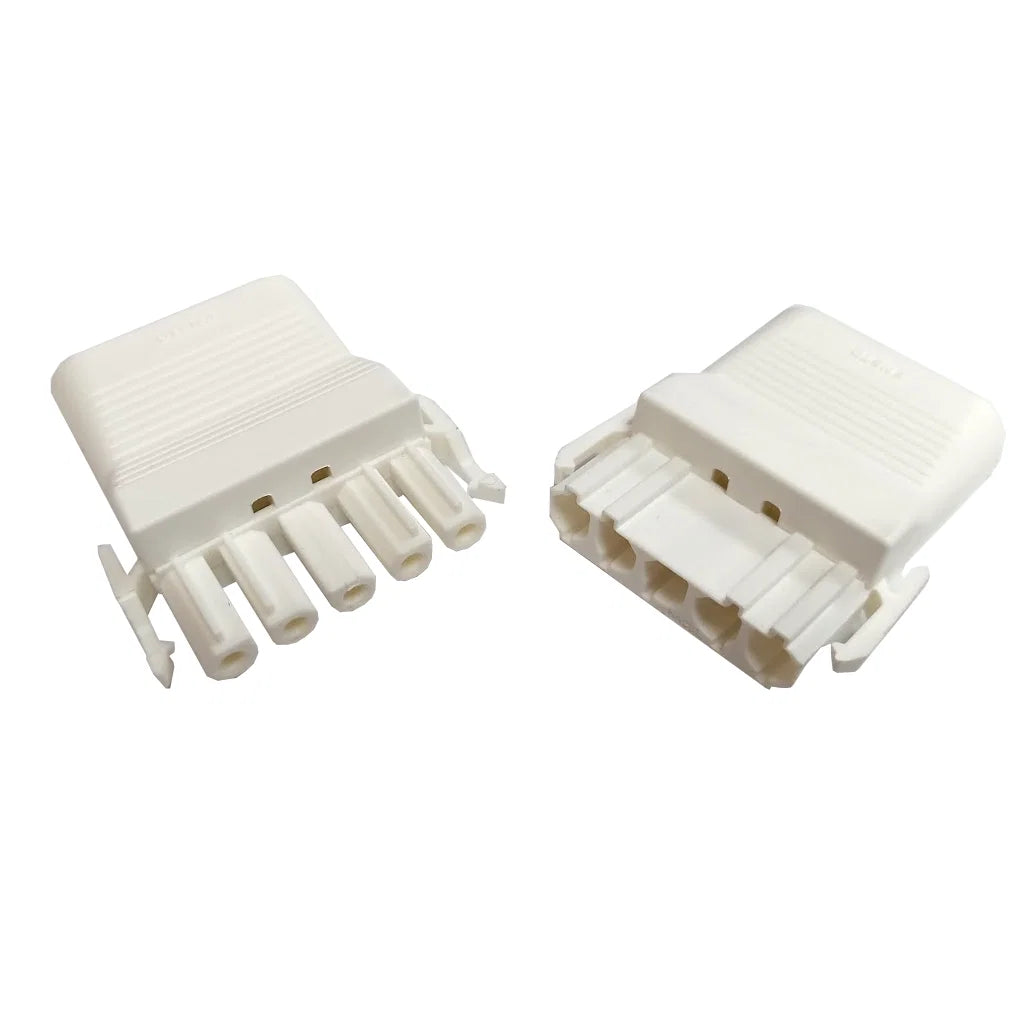

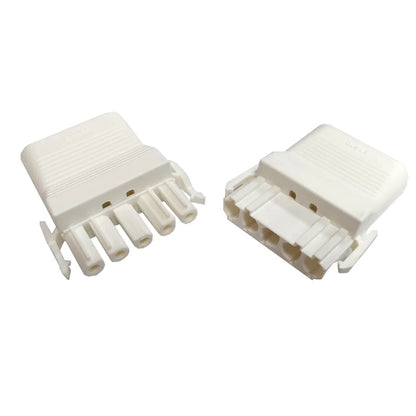

5 way connector - Electrical Connector with Strain Relief (E105)

5 way connector - Electrical Connector with Strain Relief (E105)

£12.99
£12.99
Sale Sold out
Shipping calculated at checkout.

REGE105 - 5 Way Connector

With strain relief.
- Complete with locking latch for added security.
- Male and female connectors included
- Complete with screws to secure wiring
- Used to make the wiring in boilers far more efficient for servicing

Classification Group

Color: White
Conductor cross-section: 0,75 - 4 mm²
Degree of protection: IP20
Dimensions l x w x h: 61x54x20
Flammability rating: UL 94 V-2
Material: Polyamide 66
Operating temperature max: 70 °C
Installation temperature min: 5 °C
Operating temperature min: -30°C without mechanical stress
Pole markings: 1,2,PE,N,3
Rated current: 20 A
Rated voltage: 250 ... 400 V
UL Rated current: 16 A
UL Rated voltage: 250 V
UL Wire Size: 12 ... 18



Dimensions

Length: 61 mm
Width: 54 mm
Height: 20 mm
Weight: 0.0243 kg


Model: Plug
Rated current: 20 A
Number of poles: 5
Degree of protection (IP): IP20
Connection type: Screw connection
Connection cross section (fine-strand): 0.75 ... 4 mm²
Connection cross section (solid-core): 0.75 ... 4 mm²
Number of connections per pole: 1
Pole codification: 3, N, PE, 2, 1
Mechanical coding: Yes
Colour coding/contact insert: White
Locking mechanism: Separate
With strain relief: Yes
Max. continuous temperature resistance contact part: 70 °C
Max. continuous temperature resistance strain relief: 70 °C
Material housing: Polyamide (PA)
Halogen free: Yes
Contact material: CuZn
Surface finish contacts: Silver-plated
Pollution degree: 2
Rated surge voltage: 4 kV
Length: 61 mm
Height: 20 mm
Width: 54 mm
